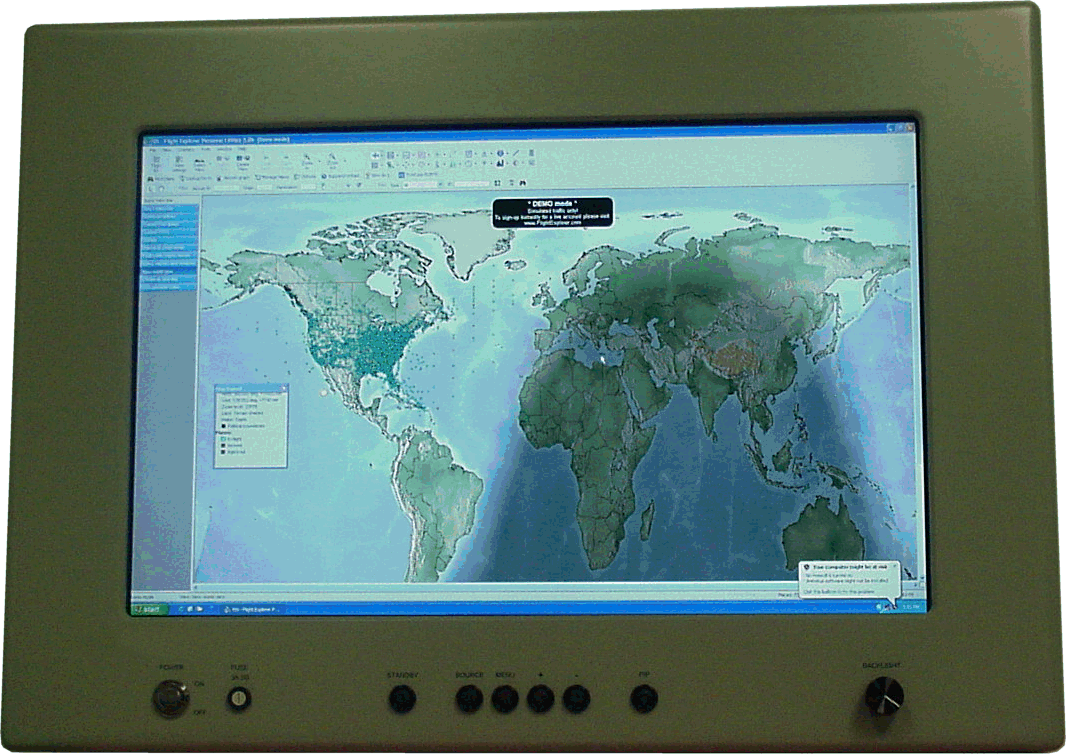

Model 3324 Monitors for Industrial and Military Applications.
Features:
- 24.0" diagonal LCD
- 16 x 9 HDTV aspect ratio
- Rugged design intended for harsh environments
- Metal Enclosure with VESA mount, Rack mount, Console mount or Tabletop
- Auto-detection of multiple display formats from 640x480 to 1920x1200, including interlaced formats, with excellent scaling to 1920x1200 native resolution
- VESA DPMS compliant, VESA DDC1/2 plug and play compliant
- Backlight stabilization standard
- Accepts digital or analog RGB at DVI-I connector, S-video or composite video at DIN or RCA connector
General Information
-=Very High Resolution=-
EDL Displays Color Monitors have the highest resolution available. The .27mm dot pitch liquid crystal display provides the sharpest images available with resolutions up to and including 1920 X 1200.
-=Fast Response Time=-
With a video response time of 30msec the 3324 can display full motion video.
-=Ease of Adjustment=-
All controls that may be necessary to adjust in the field are available via the on screen display menu.
-=Reliability=-
The monitor is designed with reliability as paramount in importance. Reliability is accomplished by using high quality parts and assuring that these parts are operating at less than their intended stress levels.

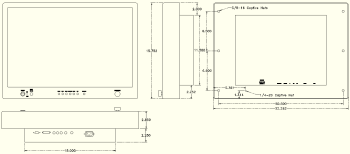

[click image for larger drawing]
Specifications
-=Display=-
Active Area: 518.4mm x 324mm (20.4" x 12.75")
Native Resolution: 1920 X 1200
Pixel Pitch: 0.27mm (0.090 X RGB)
Colors: 16,777,216 (256 gray levels)
Contrast Ratio: 500:1 (typical, at 25°C)
Luminance: 300 cd/m²
Luminance Variation: 25% (MAX, AT 25°C)
Viewing Angle, H: ±85° (typical, for CR ≥ 10)
Viewing Angle, V: ±85° (typical, for CR ≥ 10)
CIE White: X = 0.313, Y = 0.329 (typical at 25°C)
Response Time: tr = 17msec, tf = 13msec (typical, at 25°C)
-=Backlight=-
Type: 6 CCFL
Lifetime: 50,000 hrs (typical, at 25°C)
-=Electromagnetic Environment=-
Susceptibility: Per EN50082-1
Emissions: Per EN50081-1, FCC class B
-=Safety=-
Safety: Per UL/C 1950, EN60950
-=Physical Environment=-
Temperature (operating): 0°C to +55°C
Temperature (storage): -20°C to +71°C
Relative Humidity (operating): 95%, non-condensing (to 55°C)
Relative Humidity (storage): 95%, non-condensing (to 71°C)
ALTITUDE (operating): Sea level to 15,000ft (4500m)
Altitude (storage): Sea level to 40,000ft (12000m)
Shock (operating): 30g, 11msec ½ sine
Shock (storage): 30g, 11msec ½ sine
Vibration (operating): ±1mm, 2 to 13Hz; 0.7g, 13 to 100Hz, 3 axes
Vibration (storage): TBD
Weight (in standard configuration): 36lbs. (16.3Kg)
Power (in standard configuration): 95W
-=Inputs=-
Video Signal Input: RGB digital (TMDS) or RGB analog, 0.7Vp-p into 75Ω, S-video or composite video
Sync Signal Input: Separate TTL H&V, Composite TTL H&V, Sync on green
Sync Selection: Automatic
Signal Connector: DVI-I for RGB, DIN for S-video, RCA jack for composite video (RGB via HD-15 or BNC handled with cable options)
Configuration Guide
A 3324 monitor is specified using the model numbering scheme illustrated below. The full model number consists of a base model number followed by a series of letters indicating options installed.
Example: A 3324 with a VESA mount, 24V input, AR coated glass and laminated would have a part number of.
3324-24V-BD
| Option Code | |
|---|---|
| Mounting Options | |
| VESA Mount | Standard |
| Rack Mount | RM |
| Console Mount | CM |
| Table Top Stand | TM |
| Power Supply Options | |
| 115 to 230VAC Input (85 to 265VAC, 47 to 66Hz and 400Hz), IEC receptacle | Standard |
| 24VDC Input (-18VDC to +32VDC), screw terminal block | 24V |
| 115 to 230VAC Input (85 to 265VAC, 47 to 66Hz and 400Hz), Military connector | MC |
| Screen Overlay Options | |
| Strengthened glass, A-R coating | Standard |
| Strengthened glass, fine etch | ET |
| Capacitive touchscreen, A-R etch, 88% transmissivity, with integrated serial or USB controller | CT |
| Resistive touchscreen, with integrated serial or USB controller | RT |
| Surface Accoustic Wave (SAW) touchscreen, with integrated serial or USB controller | ST |
| Screen Overlay Mounting Options | |
| Mounted Glass Overlay | Standard |
| Laminated (Optically Bonded) Glass | BD |
| Operator Controls Options | |
| Front controls, including digital controls for OSD, analog luminance control, power switch | Standard |
| Front controls, including digital controls for OSD, analog luminance control, no power switch | NP |
| Optional Modules | |
| Integrated Terminal Server or X-terminal Thin Client | TC |
| Two Input Video Switch | VS2 |
| Accessories | |
| Remote Control Option | |
| IR Remote controls | IR |
| Cable Options | |
| DVI-I to DVI-D, 2m | DVID |
| DVI-I to DVI-A, 2m | DVIA |
| DVI-I to HD-15, 2m | HD15 |
| DVI-I to 5 BNC, 2m | BNC |
| Cable FAQ is available at http://edldisplays.com/support/cable-faq.php | |
| Mounting Kits | |
| Yoke Mounting Kit | YK |
| Table Top VESA Mount Kit | TK |
| Wall Mount VESA Kit | WK |
