Model 3021 Monitors for Industrial and Military Applications.
Features:
- 21.3" diagonal LCD
- Rugged design intended for harsh environments
- DVI, Analog, Composite Video, S-Video inputs
- Backlight stabilization standard
- Auto-detection of multiple display formats from 640x350 to 1600x1200, including interlaced formats.
- VESA DPMS compliant, VESA DDC1/2 plug and play compliant
- All metal enclosure
General Information
-=Very High Resolution=-
EDL Displays Color Monitors have the highest resolution available. The .255mm pixel pitch liquid crystal display provides the sharpest images available with resolutions up to and including 1600 X 1200.
-=Fast Response Time=-
With a video response time of 25msec the 3021 can display full motion video.
-=Reliability=-
The monitor is designed with reliability as paramount in importance. Reliability is accomplished by using high quality parts and assuring that these parts are operating at less than their intended stress levels.
-=Ease of Adjustment=-
All controls that may be necessary to adjust in the field are available via the on screen display menu.

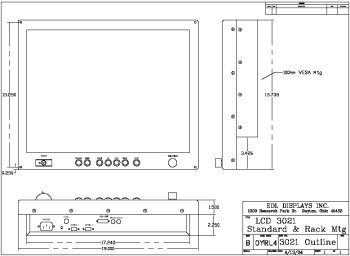

[click image for larger drawing]
Preliminary Specifications
-=Display=-
Active Area: 432mm x 332mm (16.65" x 13.07")
Native Resolution: 1600 X 1200
Pixel Pitch: 0.27mm
Colors: 16,777,216
(256 gray levels)
Contrast Ratio: 400:1
Luminance: 250 cd/m²
Luminance Variation: 10% (MAX, AT 25°C)
Viewing Angle, H: ±85° (typical, for CR ≥ 10)
Viewing Angle, V: ±85° (typical, for CR ≥ 10)
CIE White: X = 0.310, Y = 0.340
(typical at 25°C)
Response Time: tr = 15msec, tf = 10msec (typical, at 25°C)
-=Backlight=-
Type: 6 CCFL
Lifetime: 50,000 hrs (typical, at 25°C)
-=Electromagnetic Environment=-
Susceptibility:Per EN50082-1
Emissions: Per EN50081-1, FCC class B
-=Safety=-
Safety: Per UL/C 1950, EN60950
-=Physical Environment=-
Temperature (operating): 0°C to +50°C
Temperature (storage): -20°C to +60°C
Relative Humidity (operating): 85%, non-condensing (to 50°C)
Relative Humidity (storage): 85%, non-condensing (to 55°C)
Altitude (operating): Sea level to 15,000ft (4500m)
Altitude (storage): Sea level to 40,000ft (12000m)
Shock (operating): TBD
Shock (storage): TBD
Vibration (operating): ±1mm, 2 to 13Hz; 0.7g, 13 to 100Hz, 3 axes
Vibration (storage): TBD
Weight (in standard configuration): 30lbs. (14Kg)
Power (in standard configuration): 100W
-=Inputs=-
Video Signal Input: RGB digital (TMDS) or RGB analog, 0.7Vp-p into 75Ω
Sync Signal Input: Separate TTL H&V,
Composite TTL H&V,
Sync on green
Sync Selection: Automatic
Signal Connector: DVI-I for RGB, DIN for S-video, RCA jack for composite video (RGB via HD-15 or BNC handled with cable options)
Configuration Guide
A 3021 monitor is specified using the model numbering scheme illustrated below. The full model number consists of a base model number followed by a series of letters indicating options installed.
Example: A 3021 with a VESA mount, 24V input, AR coated glass and laminated would have a part number of.
3021-24V-BD
| Option Code | |
|---|---|
| Mounting Options | |
| VESA Mount | Standard |
| Rack Mount | RM |
| Console Mount | CM |
| Table Top Stand | TM |
| Power Supply Options | |
| 115 to 230VAC Input (85 to 265VAC, 47 to 66Hz and 400Hz), IEC receptacle | Standard |
| 24VDC Input (-18VDC to +32VDC), screw terminal block | 24V |
| 115 to 230VAC Input (85 to 265VAC, 47 to 66Hz and 400Hz), Military connector | MC |
| Screen Overlay Options | |
| Strengthened glass, A-R coating | Standard |
| Strengthened glass, fine etch | ET |
| Capacitive touchscreen, A-R etch, 88% transmissivity, with integrated serial or USB controller | CT |
| Resistive touchscreen, with integrated serial or USB controller | RT |
| Surface Accoustic Wave (SAW) touchscreen, with integrated serial or USB controller | ST |
| Screen Overlay Mounting Options | |
| Mounted Glass Overlay | Standard |
| Laminated (Optically Bonded) Glass | BD |
| Operator Controls Options | |
| Front controls, including digital controls for OSD, analog luminance control, power switch | Standard |
| Front controls, including digital controls for OSD, analog luminance control, no power switch | NP |
| Optional Modules | |
| Integrated Terminal Server or X-terminal Thin Client | TC |
| Two Input Video Switch | VS2 |
| Accessories | |
| Remote Control Option | |
| IR Remote controls | IR |
| Cable Options | |
| DVI-I to DVI-D, 2m | DVID |
| DVI-I to DVI-A, 2m | DVIA |
| DVI-I to HD-15, 2m | HD15 |
| DVI-I to 5 BNC, 2m | BNC |
| Cable FAQ is available at http://edldisplays.com/support/cable-faq.php | |
| Mounting Kits | |
| Yoke Mounting Kit | YK |
| Table Top VESA Mount Kit | TK |
| Wall Mount VESA Kit | WK |
