Auto-detection of multiple display formats from 640x350 to 1600x1200, including interlaced formats.
VESA DPMS compliant, VESA DDC1/2 plug and play compliant
Rugged enclosure
General Information
Very High Resolution
EDL Displays Color Monitors have the highest resolution available. The .255mm pixel pitch liquid crystal display provides the sharpest images available with resolutions up to and including 1600 X 1200.
Reliability
The monitor is designed with reliability as paramount in importance. Reliability is accomplished by using high quality parts and assuring that these parts are operating at less than their intended stress levels.
Fast Response Time
With video response times averaging 12.5msec the 3020 can display full motion video.
Ease of Adjustment
All controls that may be necessary to adjust in the field are available via the on screen display menu.

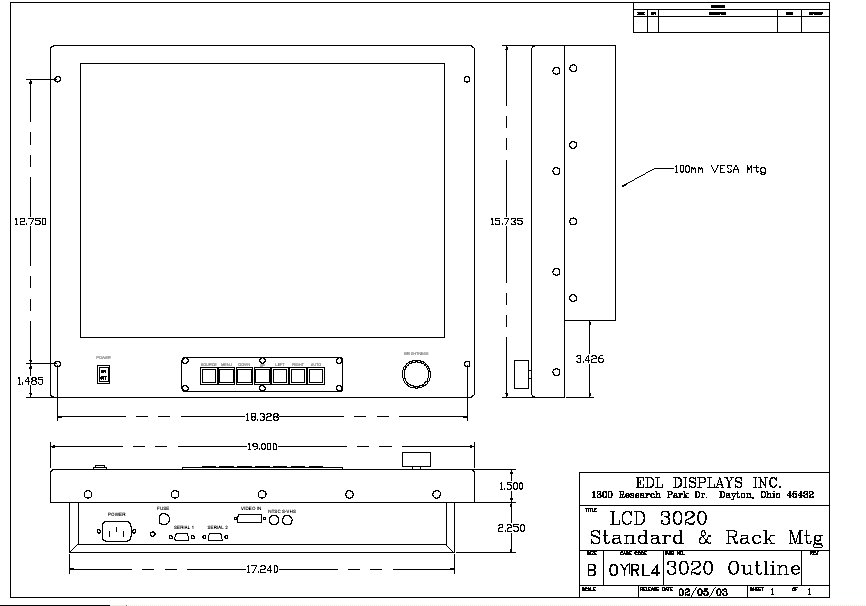

[click image for larger drawing]
Preliminary Specifications
Display
ACTIVE AREA:
408.0mm x 306.0mm (16.06" x 12.04")
NATIVE RESOLUTION:
1600 X 1200
PIXEL PITCH:
0.255mm (0.085 X RGB)
COLORS:
16,777,216 (256 grey levels)
CONTRAST RATIO:
TBD
LUMINANCE:
700 cd/m²
LUMINANCE VARIATION:
10% (MAX, AT 25°C)
VIEWING ANGLE, H:
±80° (typical, for CR ≥ 10)
VIEWING ANGLE, V:
±80° (typical, for CR ≥ 10)
CIE WHITE:
X = 0.294, Y = 0.309 (typical at 25°C)
RESPONSE TIME:
tr = 20msec, tf = 5msec (typical, at 25°C)
Backlight
TYPE:
6 CCFL
LIFETIME:
50,000 hrs (typical, at 25°C)
Electromagnetic Environment
SUSCEPTIBILITY:
Per EN50082-1
EMISSIONS:
Per EN50081-1, FCC class B
Physical Environment
TEMPERATURE (operating):
0°C to +50°C
TEMPERATURE (storage):
-20°C to +60°C
RELATIVE HUMIDITY (operating):
85%, non-condensing (to 50°C)
RELATIVE HUMIDITY (storage):
85%, non-condensing (to 55°C)
ALTITUDE (operating):
Sea level to 15,000ft (4500m)
ALTITUDE (storage):
Sea level to 40,000ft (12000m)
SHOCK (operating):
30g, 11msec ½sine
SHOCK (storage):
30g, 11msec ½sine
VIBRATION (operating):
±1mm, 2 to 13Hz; 0.7g, 13 to 100Hz, 3 axes
VIBRATION (storage):
TBD
WEIGHT (in standard configuration):
30lbs. (14Kg)
POWER (in standard configuration):
100W
Safety
SAFETY:
Per UL/C 1950, EN60950
Inputs
VIDEO SIGNAL INPUT:
RGB digital (TMDS) or RGB analog, 0.7Vp-p into 75Ω
SYNC SIGNAL INPUT:
Separate TTL H&V, Composite TTL H&V, Sync on green
SYNC SELECTION:
Automatic
SIGNAL CONNECTOR:
DVI-I for RGB, DIN for S-video, RCA jack for composite video (RGB via HD-15 or BNC handled with cable options)
