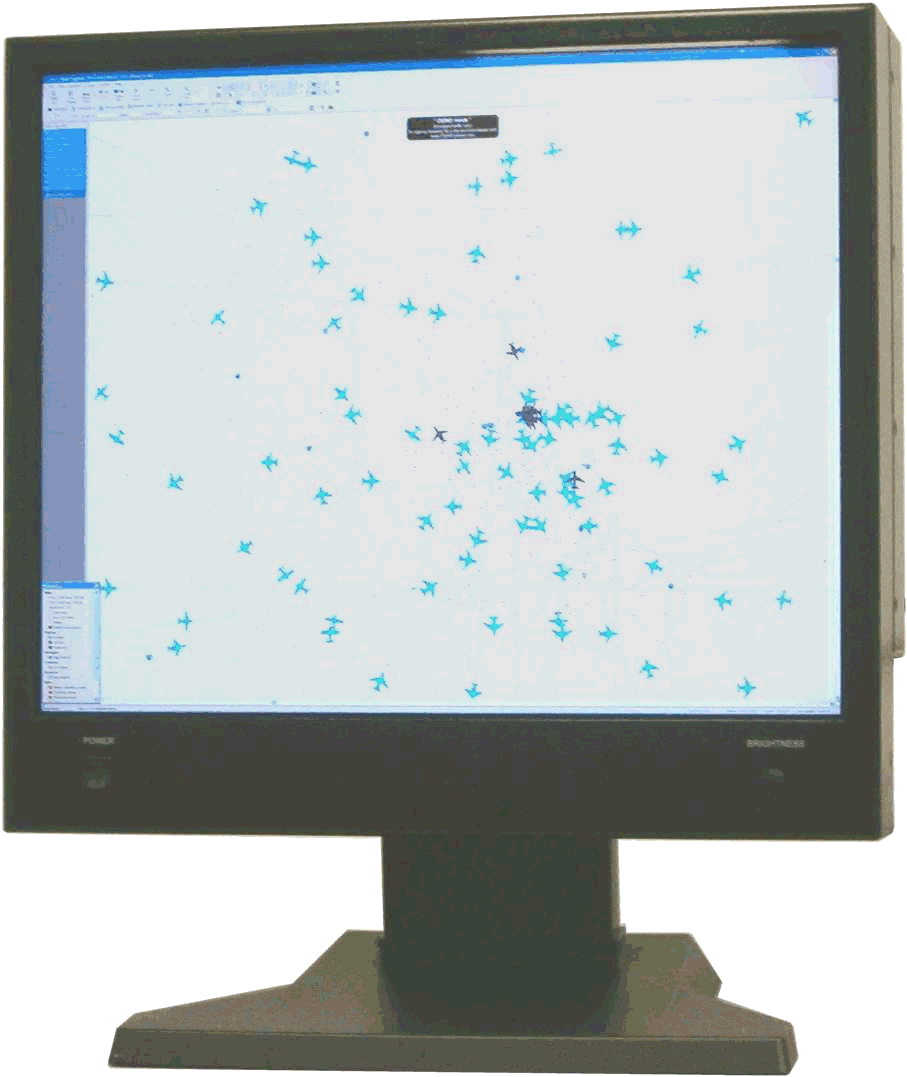

Model 3020QSX Monitor Designed for the ATC environment
Features:
- 2560 x 2048 Native Resolution
- 20.1" (15.7" x 12.6") diagonal LCD
- DVI Digital Input
- Panel Mount, Desktop chassis available
- Rugged Metal Enclosure
General Information
-=Very High Resolution=-
EDL Displays Color Monitors have the highest resolution available. The .219mm pixel pitch liquid crystal display provides the sharpest images available with 2560 X 2048 resolution.
-=Fast Response Time=-
With video response times of 25msec the 3020QSX can display full motion video.
-=Reliability=-
The monitor is designed with reliability as paramount in importance. Reliability is accomplished by using high quality parts and assuring that these parts are operating at less than their intended stress levels.
-=Ease of Adjustment=-
All controls that may be necessary to adjust in the field are available via the on screen display menu.
Drawings

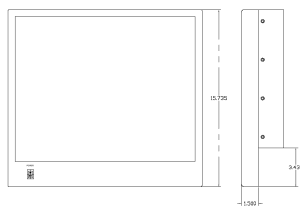

Outline Drawing
Specifications
-=Display=-
399.36mm x 319.49mm (15.7" x 12.6")
Native Resolution: 2560 X 2048
Pixel Pitch: 0.156mm (0.052 X RGB)
Colors: 16,777,216 (256 gray levels)
Contrast Ratio: 450:1 (typical, at 25°C)
Luminance: 220 cd/m²
Luminance Variation: 25% (MAX, AT 25°C)
Viewing Angle, H: ±85° (typical, for CR ≥ 10) ±70° minimum
Viewing Angle, V: ±85° (typical, for CR ≥ 10) ±70° minimum
CIE White: X = 0.313, Y = 0.329 (typical at 25°C)
CIE Red: X = 0.607, Y = 0.339 (typical at 25°C)
CIE Green: X = 0.287, Y = 0.597 (typical at 25°C)
CIE Blue: X = 0.145, Y = 0.087 (typical at 25°C)
Response Time: TBD
-=Inputs=-
Video Signal Input: RGB digital TMDS
Signal Connector: Dual Channel TMDS input on 2 DVI-D connectors
-=Safety=-
Safety: Per UL/C 1950, EN60950
-=Backlight=-
Type: 12 CCFL Lamps
Lifetime: 50,000 hrs to 60% of Maximum Brightness (typical, at 25°C)
-=Electromagnetic Environment=-
Susceptibility: Per EN50082-1
Emissions: Per EN50081-1, FCC class B
-=Physical Environment=-
Temperature (operating): 0°C to +50°C
Temperature (storage): -20°C to +60°C
Relative Humidity (operating): 85%, non-condensing (to 50°C)
Relative Humidity (storage): 85%, non-condensing (to 55°C)
Altitude (operating): Sea level to 15,000ft (4500m)
Altitude (storage): Sea level to 40,000ft (12000m)
Shock (operating): 20g, 11msec ½sine
Shock (storage): 20g, 11msec ½sine
Vibration (operating): ±1mm, 2 to 13Hz; 0.7g, 13 to 100Hz, 3 axes
Vibration (storage): TBD
Weight (in standard configuration): 60lbs. (27Kg)
Power (in standard configuration): 150W
